MEGA Synchro Tapping Holder BBT

BBT50-MGT20-105

SKU

200013612

Compensates for synchronization errors during rigid tapping. Improves thread quality and tool life by reducing thrust loads caused by synchronization errors up to 90%.

Article no.: 965.409

Availability: on stock

Product information

View
in catalogue

User Agreement

Only for traders: Login/Register

Skip to the end of the images gallery

Skip to the beginning of the images gallery

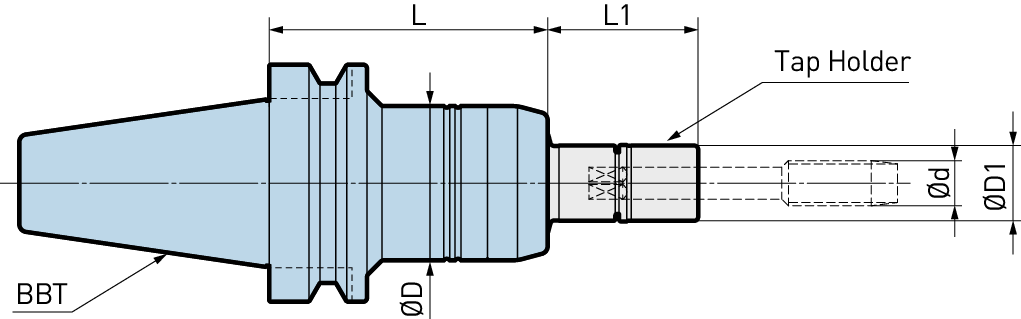

Technical data

Ød: M10-M20 / P1/4-P1/2

ØD: 54

ØD1: 30

L: 105

L1: 35 - 150

Weight (kg): 4.3

Tap Holder: MGT20

BIG-PLUS® tools can be used in machining centers with non BIG-PLUS® spindles.
Tap holder is to be ordered separately.
Synchronized tapping function is required on the machine.

MEGA Synchro Tapping Holder BBT

Compensates for synchronization errors during rigid tapping. Improves thread quality and tool life by reducing thrust loads caused by synchronization errors up to 90%.
